Application:

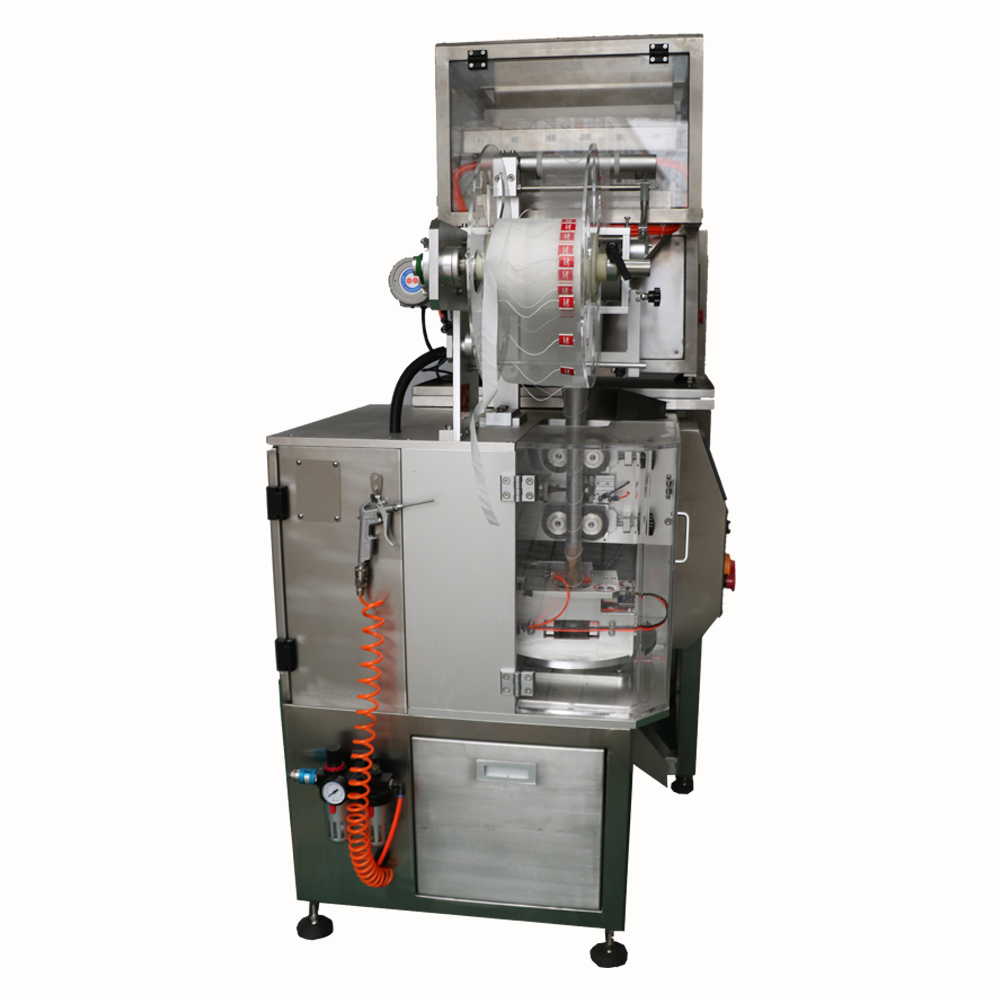

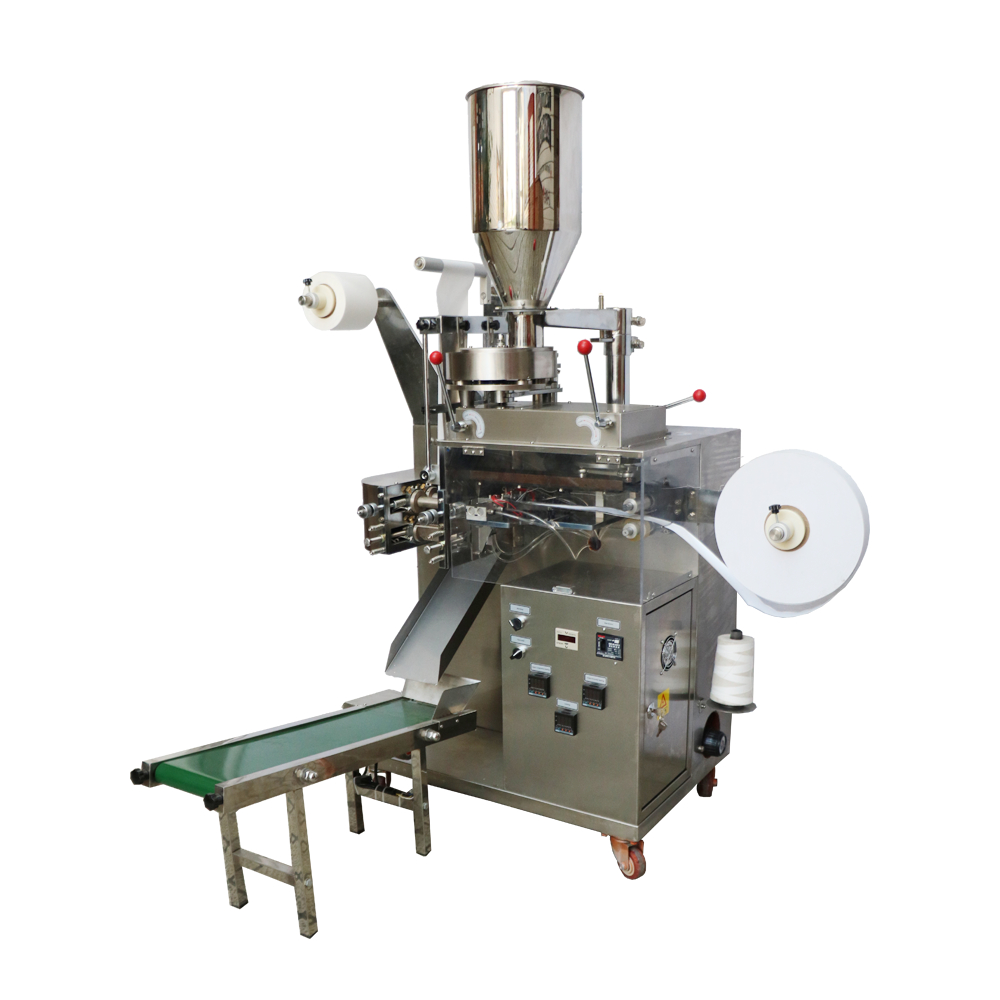

Be used for automatically packing products as green tea ,black tea,flower tea ,health tea,medicine tea,granule tea,coffee granule and so on .
Feature:
1. This machine can finish : forming bag--measuring--material filling—sealing—cutting-all the work automatically;
2. This unit can perform either three sides sealing and triangle teabag ,just need single bond to change the bag between three sides sealing and triangle shape.
3. Applicable packing materials:Nylon film with thread and label.
4. Electronic scale metering can be collocated according to the material.
5. Human-Computer Interface,Omron PLC control
6.Main motor overload protection device
7. Packaging material tension automatic adjustment device
8. The machine will automatically stop when Issued the warning.
Technical data:
|
Model No.: |
MY-SJB |
|
capacity |
20-30bags/Min(Determined by packing material) |
|
Filling precision |
≤±2%(Determined by packing material) |
|
Bag size |
60-80(W)*40-80(L)mm |
|
Packing film |
120mm,140mm,160mm |
|
Filling range |
2-10ml |
|
film thickness |
0.04-0.06mm |
|
Packing material |
Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials |
|
air consumption |
0.6m3/min 0.8Mpa |
|
total power |
2KW |
|
Power |
220V 50HZ |
|
air compressor |
No less than 1 cube |
|
Dimension |
120(L)*90(W)*200(H)cm |
|
Net.Weight |
800KG |
Technical data:
|
Model No.: |
MY-SJB |
|
capacity |
20-30bags/Min(Determined by packing material) |
|
Filling precision |
≤±2%(Determined by packing material) |
|
Bag size |
60-80(W)*40-80(L)mm |
|
Packing film |
120mm,140mm,160mm |
|
Filling range |
2-10ml |
|
film thickness |
0.04-0.06mm |
|
Packing material |
Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials |
|
air consumption |
0.6m3/min 0.8Mpa |
|
total power |
2KW |
|
Power |
220V 50HZ |
|
air compressor |
No less than 1 cube |
|
Dimension |
120(L)*90(W)*200(H)cm |
|
Net.Weight |
800KG |
|
Technical data:
|
|
|
Technical data:
|
Model No.: |
MY-SJB |
|
capacity |
20-30bags/Min(Determined by packing material) |
|
Filling precision |
≤±2%(Determined by packing material) |
|
Bag size |
60-80(W)*40-80(L)mm |
|
Packing film |
120mm,140mm,160mm |
|
Filling range |
2-10ml |
|
film thickness |
0.04-0.06mm |
|
Packing material |
Nylon, Polyester net non-woven fabrics,. ultrasonic sealing materials |
|
air consumption |
0.6m3/min 0.8Mpa |
|
total power |
2KW |
|
Power |
220V 50HZ |
|
air compressor |
No less than 1 cube |
|
Dimension |
120(L)*90(W)*200(H)cm |
|
Net.Weight |
800KG |
