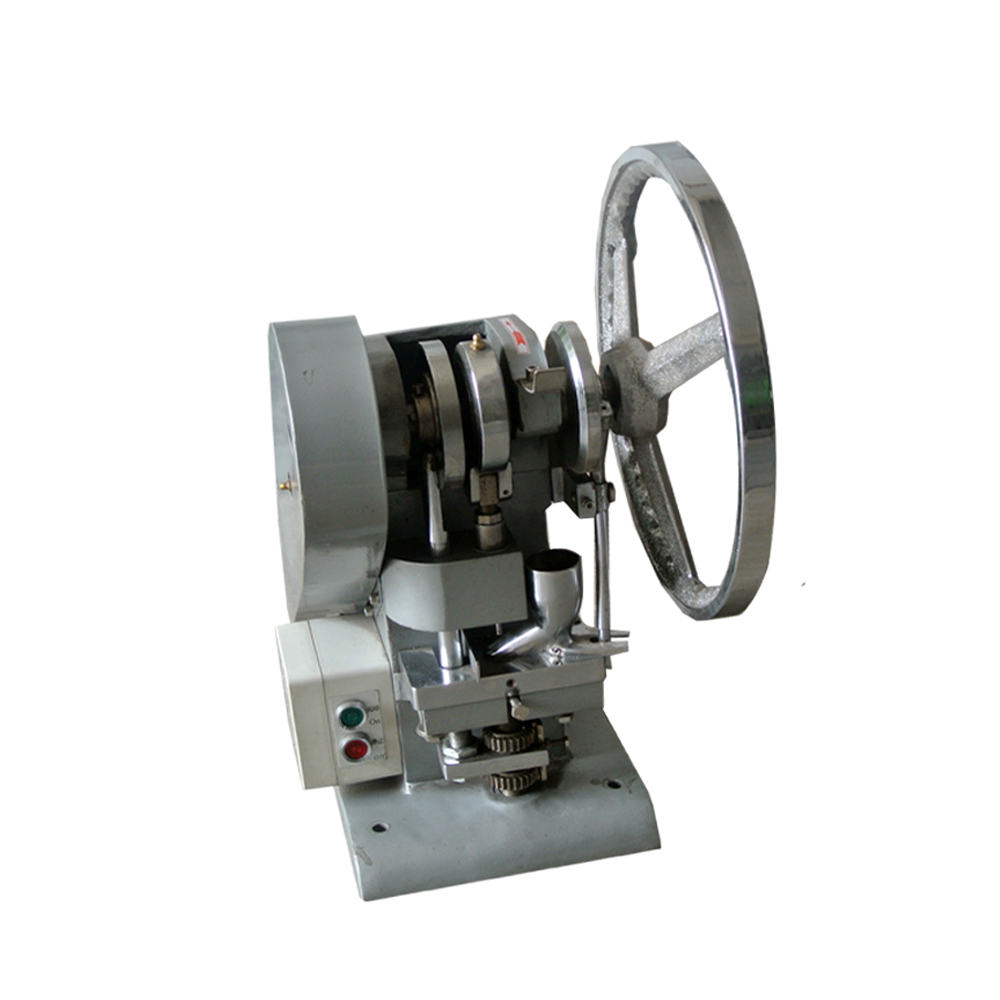

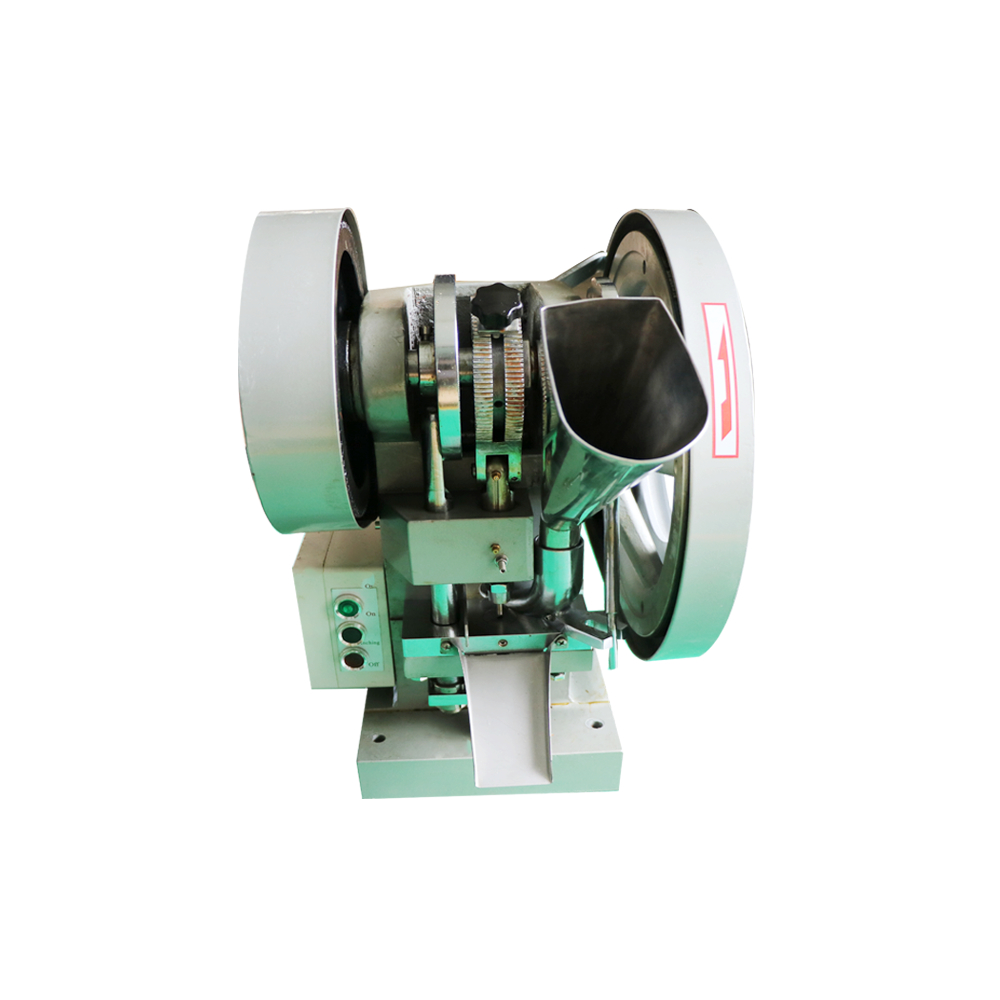

TDP-0/1 single punch tablet press

Product Description

This machine is used for tabletting different kinds of granular raw materials in to round tablet. It is applicable to trail manufacturing in Lab or batch produce in small amount different kinds of tablet , sugar piece , calcium tablet and tablet of abnormal shape . it features a small desktop type press for motive and continual sheeting .



           Main Feature



1.      Design of GMP

2.      High quality with Low Price

3.      High visibility isolated door to prevent cross contamination.

4.      Easily remove parts for quick machine`s maintenance


Main Technical Data

Product No.

TDP-0/1

TDP-3

TDP-5

TDP-6

Quantity of Punch & Die (set)

1

1

1

1

Max. Pressure (kn)

10

30

50

60

Max. Dia. of Tablet (mm)

8

13

22

25

Max. Thickness of Tablet (mm)

6

6

6

7

Max. Depth of Filling (mm)

12

14

15

15

Production Capacity (pcs/h)

6000

6000

3600

3600

Voltage (v/hz)

220/50

220/50

220/50

220/50

Motor Power (kw)

0.55

0.55

0.65

0.75

Overall Size (mm)

550*440*650

600*500*680

640*500*700

650*500*700

Weight (kg)

60

100

150

160



Main Technical Data

Product No.

TDP-0/1

TDP-3

TDP-5

TDP-6

Quantity of Punch & Die (set)

1

1

1

1

Max. Pressure (kn)

10

30

50

60

Max. Dia. of Tablet (mm)

8

13

22

25

Max. Thickness of Tablet (mm)

6

6

6

7

Max. Depth of Filling (mm)

12

14

15

15

Production Capacity (pcs/h)

6000

6000

3600

3600

Voltage (v/hz)

220/50

220/50

220/50

220/50

Motor Power (kw)

0.55

0.55

0.65

0.75

Overall Size (mm)

550*440*650

600*500*680

640*500*700

650*500*700

Weight (kg)

60

100

150

160


Main Technical Data

Product No.

TDP-0/1

TDP-3

TDP-5

TDP-6

Quantity of Punch & Die (set)

1

1

1

1

Max. Pressure (kn)

10

30

50

60

Max. Dia. of Tablet (mm)

8

13

22

25

Max. Thickness of Tablet (mm)

6

6

6

7

Max. Depth of Filling (mm)

12

14

15

15

Production Capacity (pcs/h)

6000

6000

3600

3600

Voltage (v/hz)

220/50

220/50

220/50

220/50

Motor Power (kw)

0.55

0.55

0.65

0.75

Overall Size (mm)

550*440*650

600*500*680

640*500*700

650*500*700

Weight (kg)

60

100

150

160


Main Technical Data

Product No.

TDP-0/1

TDP-3

TDP-5

TDP-6

Quantity of Punch & Die (set)

1

1

1

1

Max. Pressure (kn)

10

30

50

60

Max. Dia. of Tablet (mm)

8

13

22

25

Max. Thickness of Tablet (mm)

6

6

6

7

Max. Depth of Filling (mm)

12

14

15

15

Production Capacity (pcs/h)

6000

6000

3600

3600

Voltage (v/hz)

220/50

220/50

220/50

220/50

Motor Power (kw)

0.55

0.55

0.65

0.75

Overall Size (mm)

550*440*650

600*500*680

640*500*700

650*500*700

Weight (kg)

60

100

150

160
