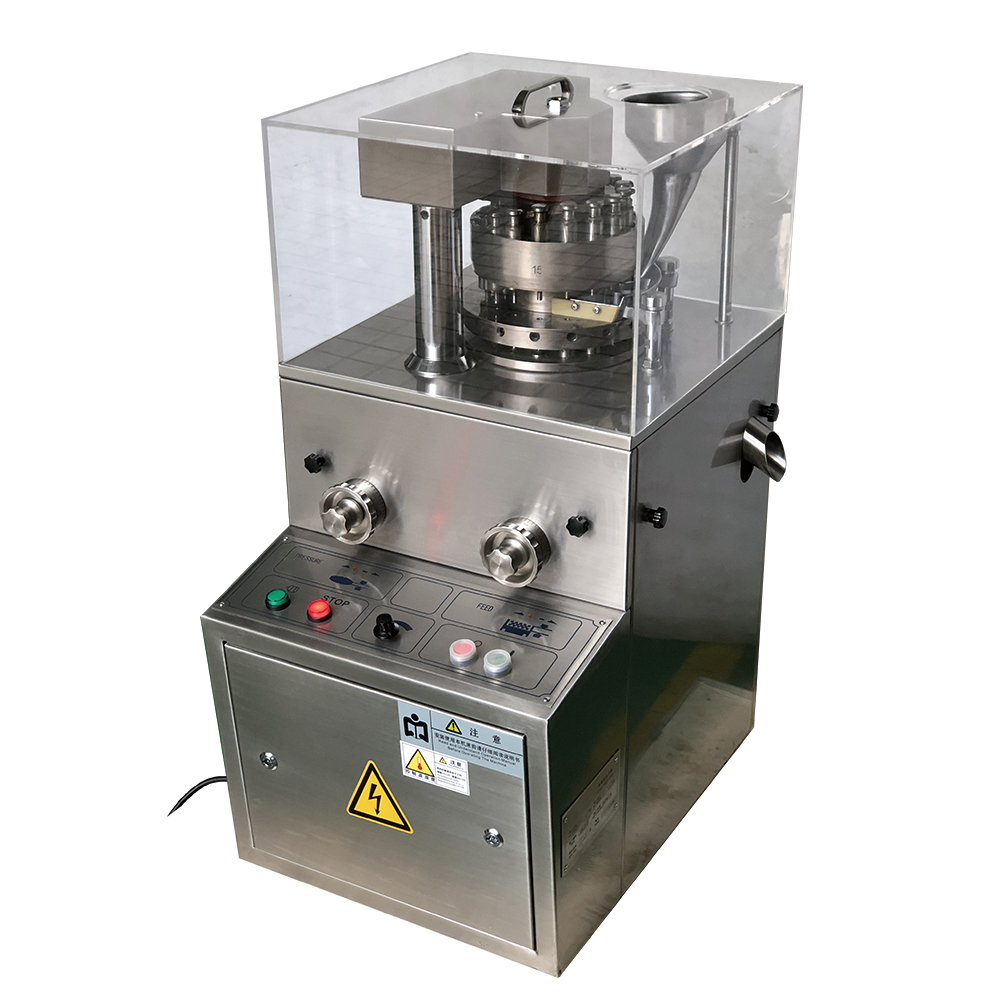

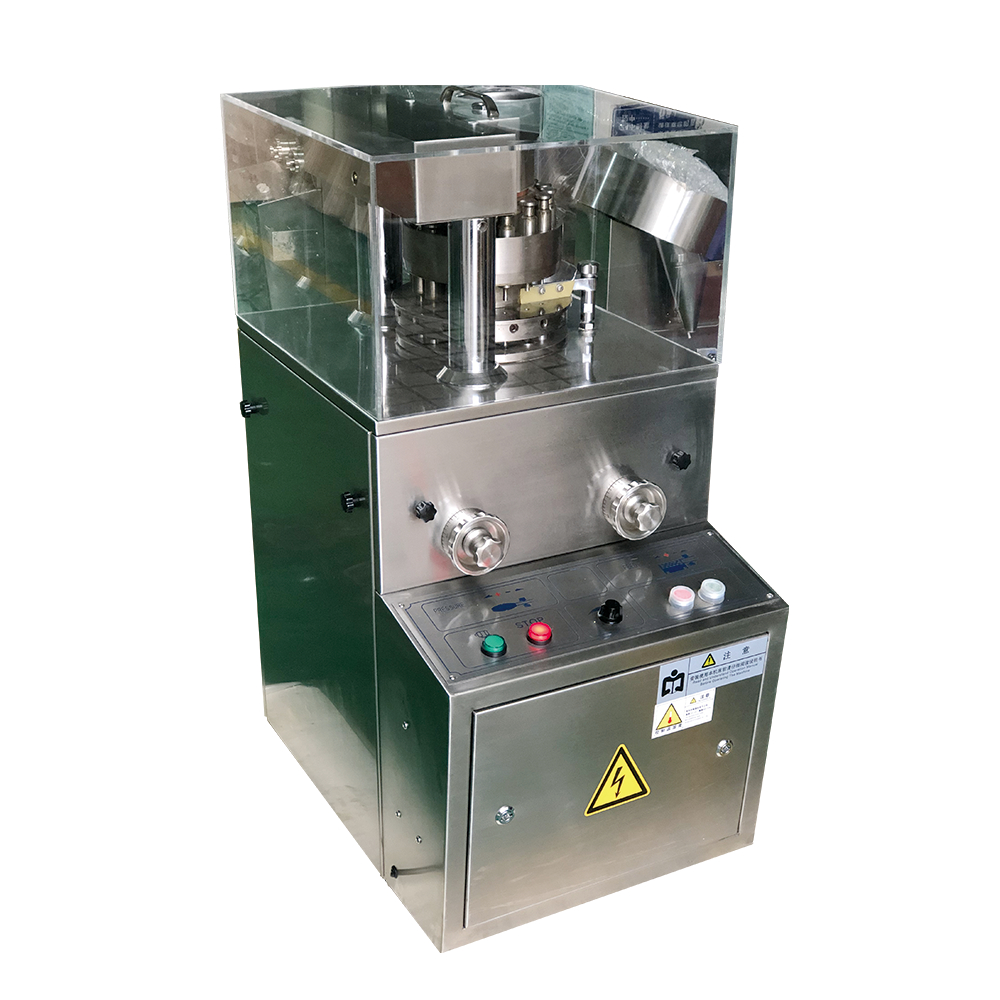

This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressingvarious kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder,metallurgy and electronic industries.
Main Feature
1. The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G. M. P requirement.
2. It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.

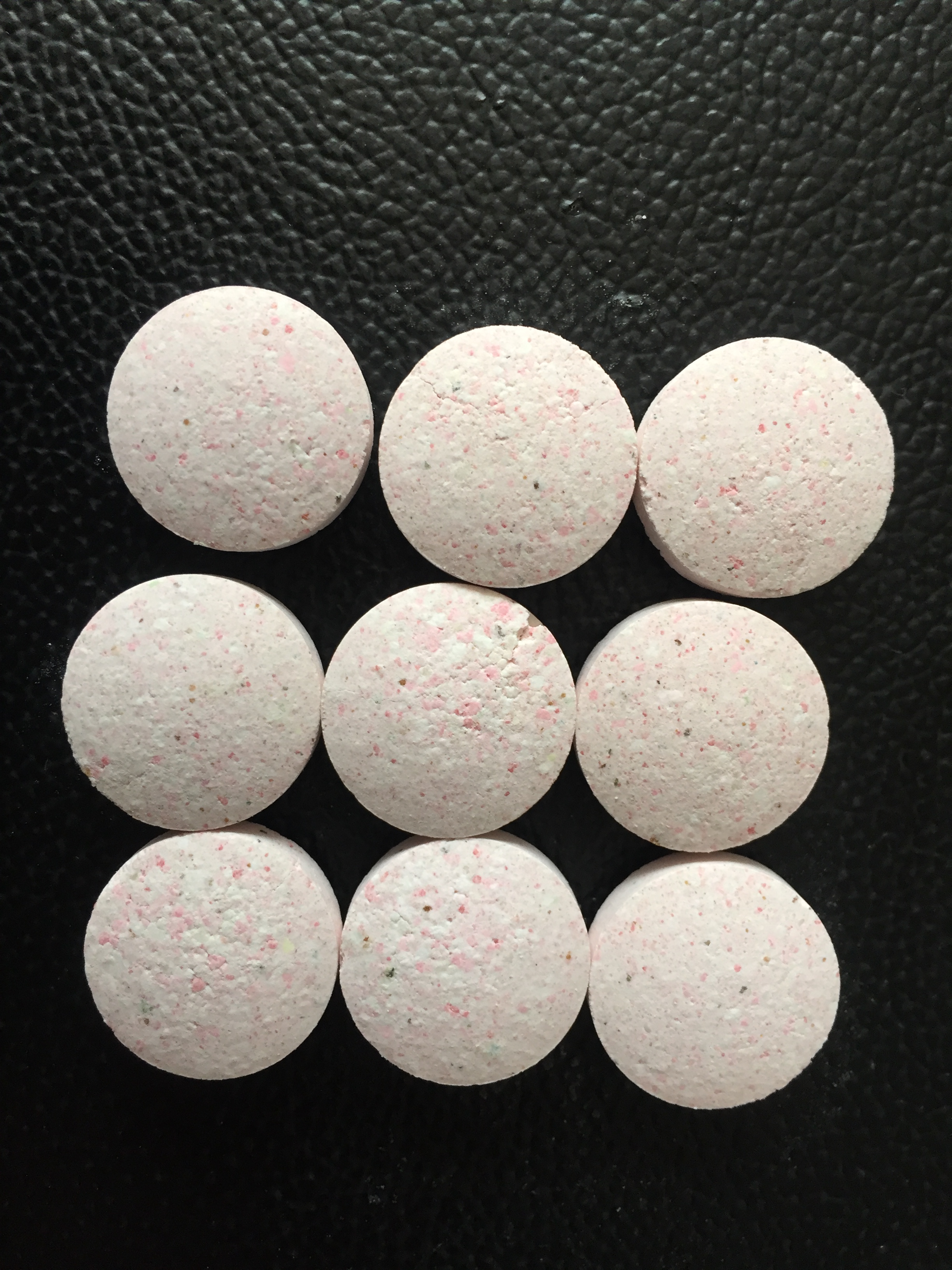

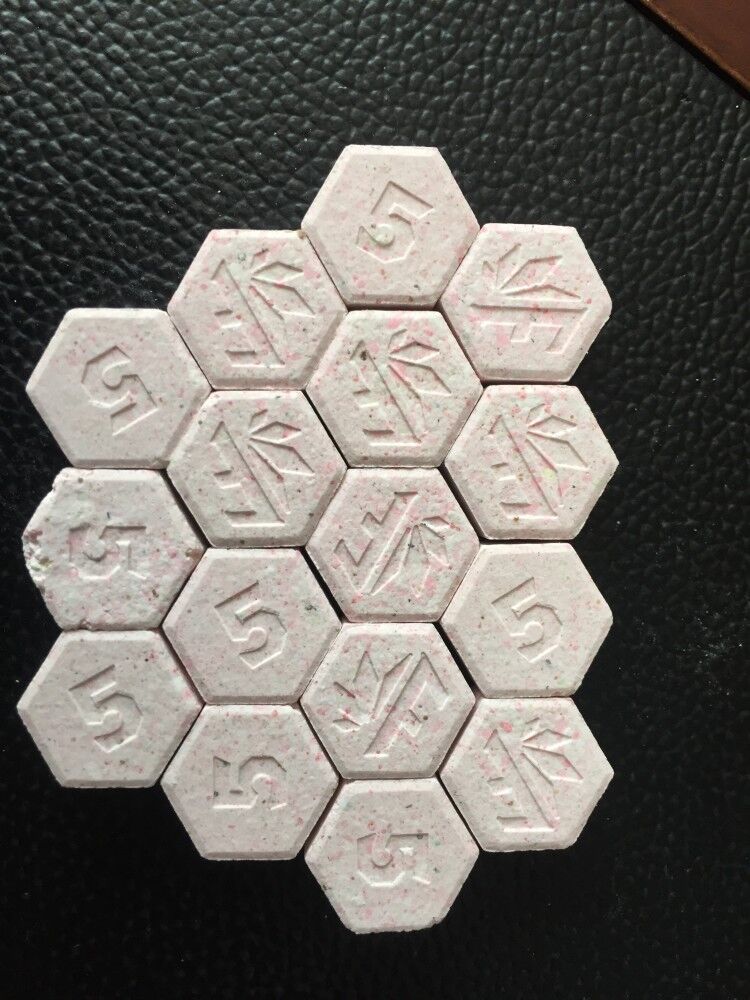

3. The machine can press not only round tablets but also different geometrical shape tablets, double-layered and annular tablets, the tablets may have the impressed letters on both sides.
4. All the controller and devices are located in one side of the machine, so that it can be easier to operate.
5. A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload cccurs.
6. The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution.
TWO: MAIN TECHNICAL DATA
|
Product model |
ZP35A |
|
ZP35B |
|
Quantity of punch&die(Set) |
35 |
|
35 |
|
Max. Pressure (KN) |
60 |
|
80 |
|
Precompression（KN） |
3 |
|
5 |
|
Max. Dia. of Tablet (Milimetre) |
12 |
|
13 |
|
Max. Depth of Filling (Milimetre) |
15 |
|
15 |
|
Max. Thickness of Tablet (Milimetre) |
6 |
|
6 |
|
Rotate speed (r/min) |
11-36 |
|
14-36 |
|
Max. Production Capacity (pc/h) |
150000 |
|
150000 |
|
Power of electric motor |
3kw . 960r/min . 380/50V/Hz |
|
3kw . 960r/min . 380/50V/Hz |
|
Outside measurement (Milimetre) |
910×1120×1650 |
|
1180×1050×1700 |
|
Weight (Kilogram) |
2150 |
|
2200 |
